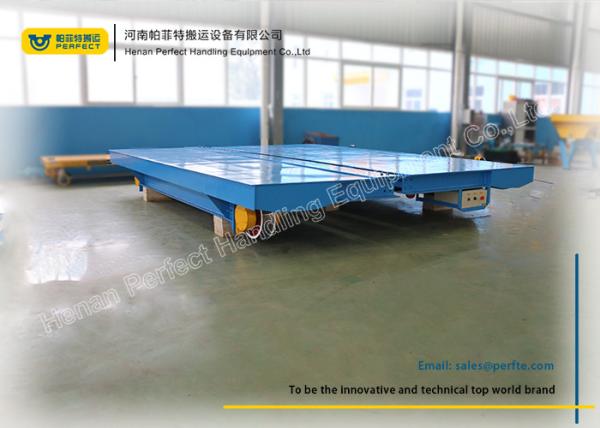

Heavy Duty Flat Rail Transfer Cart On Rail Steel Metal Transporter Detchable Car
Introduction of Heavy Duty Flat Rail Transfer Cart
This kind of transfer cart is a special design product in our company. The cart body can be devided into many parts on the the condition of the car strength and appearance aren't influenced.Different parts are connected by marked NO plates and bolts, which make the transportation convenient and cost low. Meanwhile, it can easily put into container and save the sea freight for client. The kind of design has been widely applied and solve client's transportation difficulty. There is no doubt it is a googd choice for you to save money. There are several power supply modes you can choose,such as battery powered, busbar powered, rail powered, cable drum powered and trailing cable powered. We also could give our proposal according your using environment.
Parameter Table of Explosion-Proof Rail Guided Vehicle
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Power Supply Mode Choice
There are several power supply modes you can choose. Such as battery powered,busbar powered, rail powered, cable drum powered and trailing cable powered. If you don't know how to choose it, we can also give our proposals. We will supply a suitable scheme for our clients.
Advantage Of Heavy Duty Flat Rail Transfer Cart
1. It is a kind of detachable cart which can save money for our clients.
2. It causes low noise level and give workers a good working environment.
3. All of our products are easy for operation.
4. It could be operated in the harsh environment.
5. It can realize full automation operation.
6. High temperature and explosion proof;
7. With simple structure and cost effective;
Application Sites of Heavy Duty Flat Rail Transfer Cart
Our products are mainly used to transfer goods from producing line to store or from one workshop to another. They are widely applied in metallurgy,manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse and so on.
Why Choose Us?
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
