Low Bed Track Industry electric coil transfer trolley powered by battery
Product Description
The Large-Volume Commodities Transfer Vehicle is movable platform used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, It is now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
Characters of Transfer Vehicle
--The Large-Volume Commodities Transfer Vehicle can be used to transfer any industrial cargo or factory heavy equipment, such as steel coils, steel pipes, ladle or billets, roller, pallet, prefabricated concrete, cement packets, etc.
--The Large-Volume Commodities Transfer Vehicle can be used in painting room, melt shop, storage warehouse, foundry plant, shipyard, 5S workshop, agriculture, etc.
--All of our Rail Transfer Cart are equipped with such safety device: Alarm lights, buffer, emergency stop buttons and radar sensor.
--The Rail Transfer Cart is designed depend on the working condition. You can add special function, such as lifting table, high temperature resistance, anti-explosion, etc.
Application Show of Large-Volume Commodities Transfer Vehicle
The cable drum Large-Volume Commodities Transfer Vehicle is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
Parameter Table
| BJT SERIES TRANSFER CART TECHNICAL PARAMETER TABLE |
| Model | KPJ-2t | KPJ-5t | KPJ-10t | KPJ-16t | KPJ-20t | KPJ-25t | KPJ-30t | KPJ-40t | KPJ-50t | KPJ-63t | KPJ-80t | KPJ-100t | KPJ-150t |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size(mm) | Length( L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width( W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Heigth( H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter(mm) | Ф270 | Ф300 | Ф300 | Ф350 | Ф350 | Ф400 | Ф400 | Ф500 | Ф500 | Ф600 | Ф600 | Ф600 | Ф600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power(Kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
| Notes:1.Load capacity,table size and rail gauge can be customized. 2.Options:a.Cable reel( Spring type, magnetic coupling type,motor- driven type);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel);c.Operation way(hand held control pendant,remote radio control or operation platform with the cart; d.Electrical parts(imported or made in China); e. power supply position( middle or two ends);f.Variable speed device(VFD); g.Can be designed to meet special working environment such as high temperature. |
-

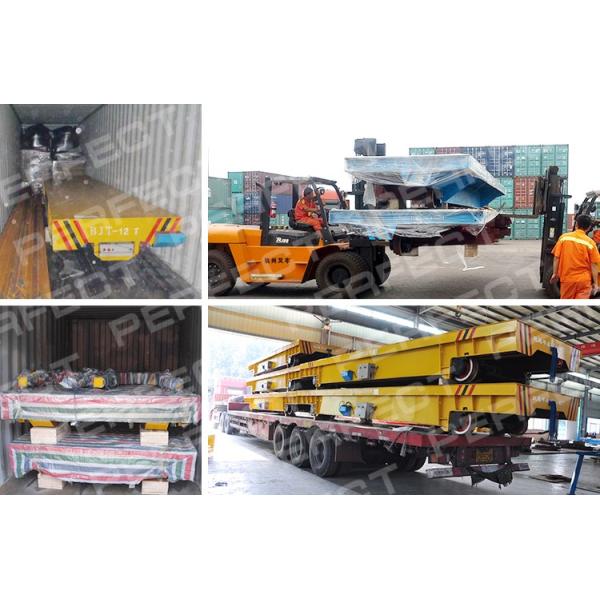

The coil transfer trolley by battery body is packed with tarp, the V-groove Table Rail Handling Trailer wheel and parts will be packed with wooden case.
-
For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the coil transfer trolley by battery is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
- Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
